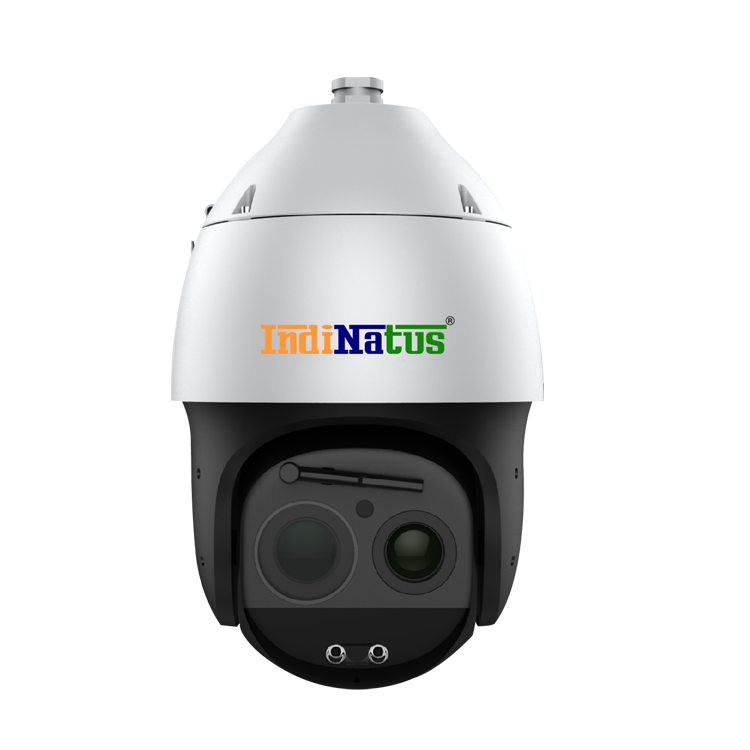

5MP 45x Starlight IR Thermal PTZ Camera

IN-PT9S56P-44XT

Thermal parameters
Thermal Length 50mm
Resolution 400x300
Piexl Interval 17μm
Response Waveband 8μm~14μm

Category: Thermal PTZ Camera ( Ex-Proof & Thermal Camera )

Thermal parameters
Thermal Length 50mm
Resolution 400x300
Piexl Interval 17μm
Response Waveband 8μm~14μm

Thermal parameters
Thermal Sensor Type	Vanadium Oxide Uncooled Focal Plane Arrays
Thermal Length	50mm
Resolution	400x300
Piexl Interval	17μm
Response Waveband	8μm~14μm
NETD	≤40mK@f/1.0
Thermal FOV	Horizontal: 7.5°,Vertical: 5.6
Measurement Distance	Detection: 4510m (vehicle),1471m (human)
Based on the reference	Recognition: 1127m (vehicle),368m (human)
human (1.8m x 0.5m) vehicle (4m x 1.4m)	Identification: 564m (vehicle),184m (human)
Fire Detection Distance Based on the reference: fire (2m×2m)	3000m
Primary Stream	PAL: 25fps (384x288),NTSC: 30fps (384x288)
Sub Stream	PAL: 25fps (384x288),NTSC: 30fps (384x288)
Third Stream	PAL: 25fps (384x288),NTSC: 30fps (384x288)
Camera
Image Sensor	1/1.8" CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.001lux@ (F1.6,AGC ON),BW: 0lux with IR
Shutter Time	1s to 1/100,000s
Day & Night	Dual IR Cut Filter with Auto Switch
Optical Zoom	45X
Digital Zoom	16X
Lens
Focal Length	6mm~270mm
Zoom Speed	<5s
Field of View	Horizontal filed of view: 61.8° (w)~2.3° (t)
Field of View	Vertical filed of view:36.3° (w)~1.3° (t)
Aperture Range	F1.6~F5.3
Focus Control	Auto/Manual
Iris Control	Auto
Close Focus Distance	1 m–3 m
Pan Range	360°
Pan Speed	Pan Manual Speed: 0.1°~160°/s,Pan Preset Speed: 240°/s
Tilt Range	-21°~90° (Default -13°~90°)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s,Tilt Preset Speed: 200°/s
3D Position	Yes
Preset	500
Preset Accuracy	±0.1°
Cruise	16,up to 32 presets per cruise
Scan	8
Pattern	8,each with 600s memory or 1000 orders
Scheduled Task	Preset、Cruise、Scan、Pattern、Alarm output
Park Action	Yes
Power-off Memory	Yes
Preset Freezing	Yes
IR Distance	Up to 500m
IR Irradiation Angle	Adjustable by Zoom
White LEDs	2,support white/blue/red light flash
Max. Resolution	5.0MP (3072x1728)
Primary Stream	PAL: 25fps (3072x1728),50fps (2560x1440,2304x1296,1920x1080,1280x720)
Primary Stream	NTSC: 30fps (3072x1728),60fps (2560x1440,2304x1296,1920x1080,1280x720
Sub Stream	PAL: 25fps (704x576,704x288,640x360,352x288)
Sub Stream	NTSC: 30fps (704x480,704x240,640x360,352x240)
Third Stream	PAL: 25fps (1920x1080,1280x720,704x576,640x480,704x288,352x288)
Third Stream	NTSC: 30fps (1920x1080,1280x720,704x480,640x480,704x240,352x240)
Video Compression	H.265+/H.265/H.264/M-JPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate	8K～48Kbps
BLC	Yes
HLC	Yes
WDR	WDR 120dB
Image Stabilization	EIS
Defog	Yes
White Balance	Yes
AGC	Yes
Noise Reduction	2D/3D
ROI	7 Dynamic Areas for Both Main and Sub Stream,support 1 auto-tracking ROI
Picture Overlay	Yes
Privacy Mask	Yes
Smart Defog	Yes
Image Setting	Saturation,brightness,contrast,sharpness,
Flip	Yes
OSD	16x16,24x24,32x32,48x48,64x64,96x96,128x128,adaptable size, Letters such as Week,Date,Time,Total 5 Regions
Feature
Alarm Trigger	Event Input,Event Output,Mask Alarm,Disk Full,Disk R/W Error,IP Address Conflict,MAC Address Conflict,FTP Server Exception
Video Analytics	Tripwire,Double Tripwire,Perimeter,Object Abandon,Object Lost,Loitering,Running,Parking,Heatmap,Crowd,People Counting,On Duty Detection,Video Abnormal,Audio Abnormal
Early Warning(EW)	Yes
Auto-Tracking	Yes
Face Detection and Analytics
Operating Mode	Face capture,intelligent monitoring optional,default intelligent monitoring
Face Detection Performance	Detects up to 16 faces at the same scene
Face Exposure Brightness	Default 35,1~100 brightness optional
Min. Face Pixel	Default 80,19~1920 optional
Network
Protocols	TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/ FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP/RTMP
System Compatibility	ONVIF (PROFILE S/T/G),SDK,CGI,P2P
Interface
Communication Interface	2 RJ45 100M/1000M self adaptive Ethernet ports
Audio I/O	1/1
Alarm I/O	8/2
Built-In Speaker	Yes
Reset Button	Yes
On-board storage	Built-in Micro SD card slot,up to 512 GB
RS-485	Yes
BNC	Yes
Wiper	Yes(Auto Wiper)
Electronic Compass	Yes
Smart Defog	Yes
General
Protection	IP67/IK10 , 6000V lightning protection,s
Operating Conditions	-40°C~70°C ,0-95%RH
Power Supply	DC36V±25%
Power Consumption	30W(IR OFF),67W(IR ON)
Heater	Yes
Dimensions	Φ445x700mm (Φ308x506mm)
Net Weight	21kg (11.6kg)
